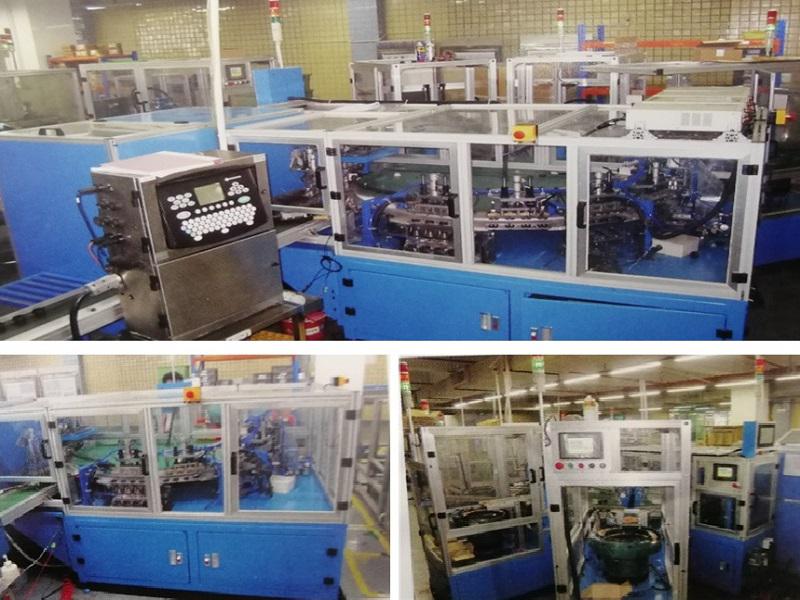

P72C automatic assembly inspection machine
- P72C automatic assembly inspection machine
- Cable terminals assembling automation line
- Connector automatic pin insertion machine
- Electric kettle temperature control switch assembly machine
- Electrical component labeling machine
- Fuse soldering and assembly automation
- Insert molding robot arm system
- Fuse sand-filling soldering assembly machine
| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Electronic parts |
| Material of product | Electronic parts |
| Industry | Electronic parts |
| Function of equipment | Assembly, Quality check |
| Type of equipment | Fully auto |

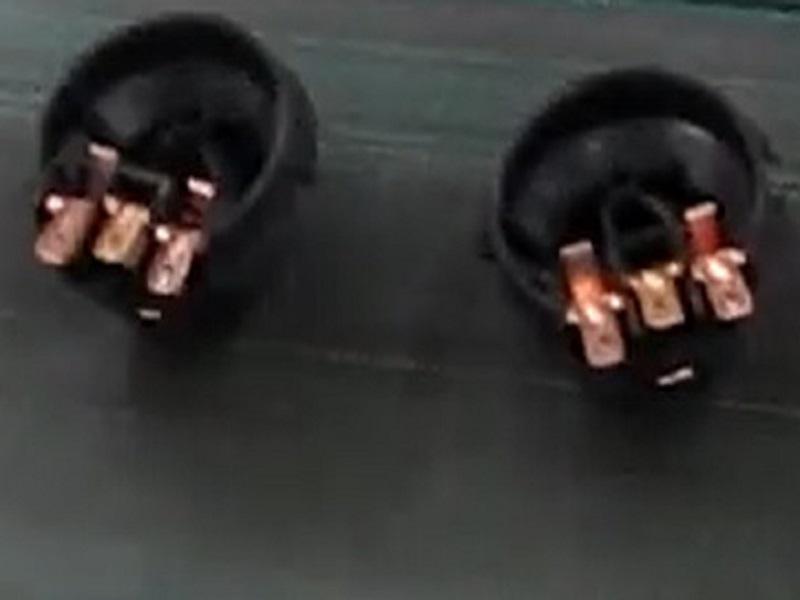

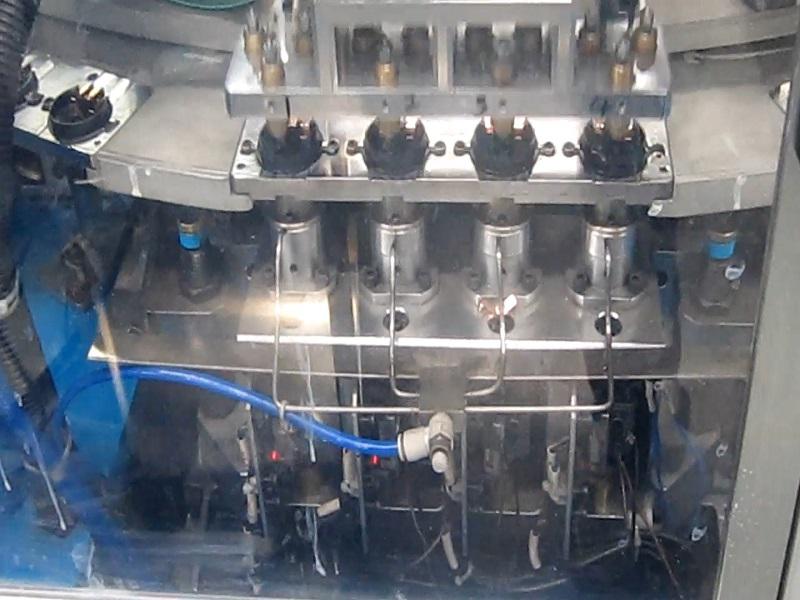

| Description | This production equipment is applied to the assembly and various inspection processes of P72C parts. The production line is divided into 10 parts. The main functions include: Automatic loading of the main body mold Automatic assembling positive and negative copper and ground piece Automatically push positive and negative and ground pieces into the main mode Automatic detection of the internal resistance of the pole piece Automatic test pole piece GO/NO GO Automatically detect the pressure insulation performance between the positive and negative electrodes Automatically detect the height of the positive and negative electrode sheets and the bottom surface of the main mold, and sort and unload the qualified/non-conforming products |

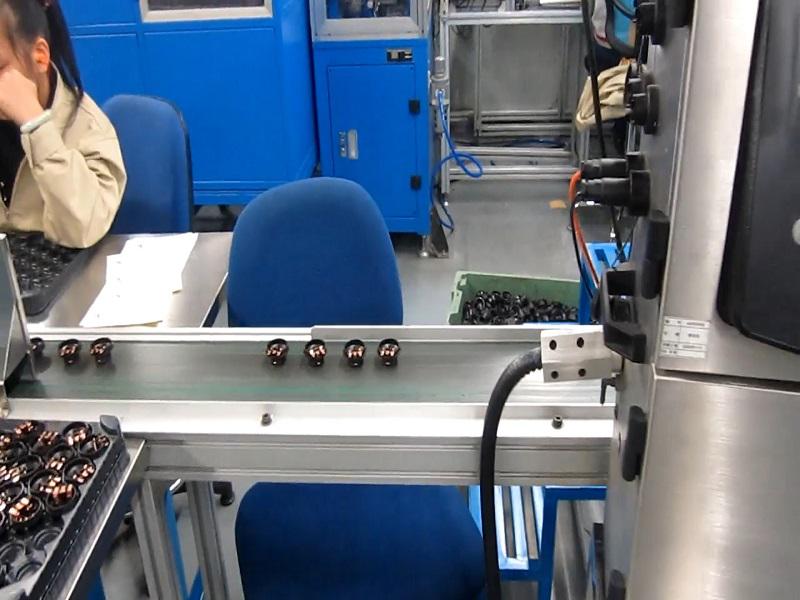

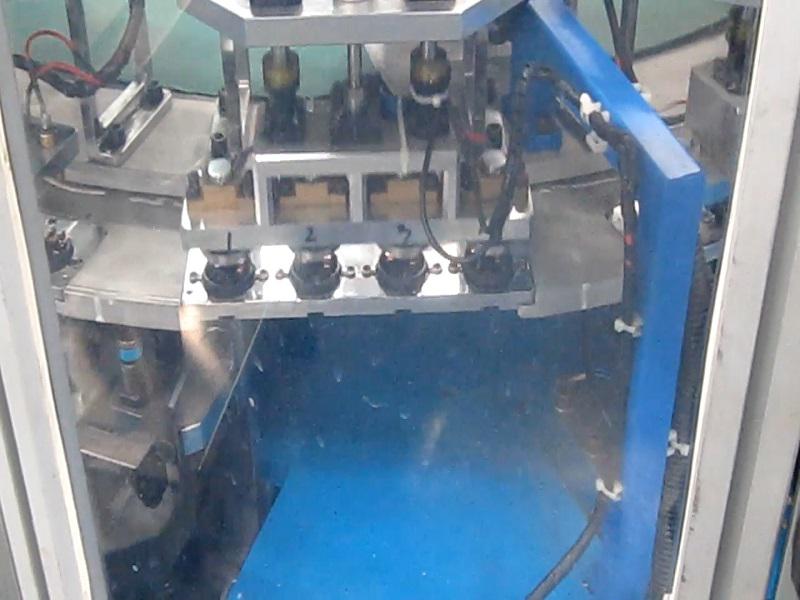

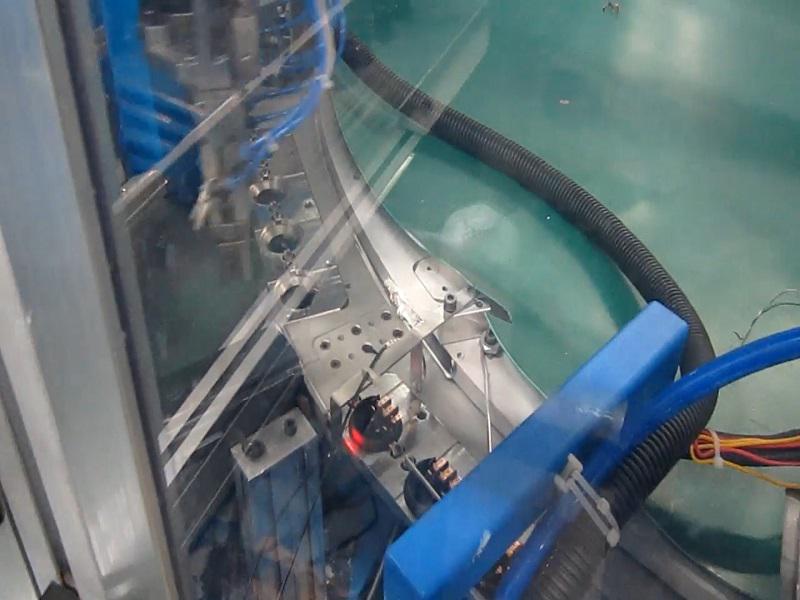

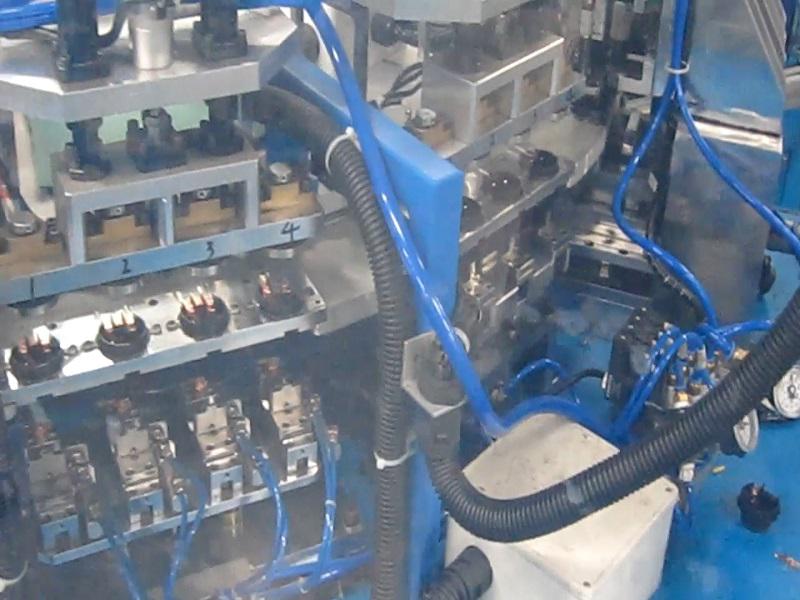

| Working principle | 1. Plastic body of the product is automatically aligned by the vibrating bowl feeder and placing into the machine by the robot. 2. The positive and negative pole pieces are automatically aligned by the vibration bowl feeder. 3. The robot takes positive and negative pole pieces and automatically presses on the plastic body. 4. Automatic internal resistance detectio 5. Automatic GO/NO GO detection 6. Automatic pressure test 7. Automatic height detection 8. Automatic unloading finished product on a conveyor belt |
| Speed | 60 pieces / min |
| Mode of operation | Automatic, Touch screen manual, Touch screen parameter settings |
| Power supply | 3-plase 380V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 4.5m x 3.1m x 1.5m |
| Major components | Cylinder: SMC Guide rail: HIWIN Index table: DEX Sensor: OMRON, KEYENCE PLC: MITSUBISHI |
| Structure of equipment | Main body components: vibrating discharge device, feeding device, dispensing device Positive electrode / negative electrode / ground plate feeding device Pressing device GO/NO Go gauge Height detecting device Internal resistance detecting device Withstand voltage detecting device Conveyor belt, blanking and sorting device Internal resistance meter Rotary work disk |
