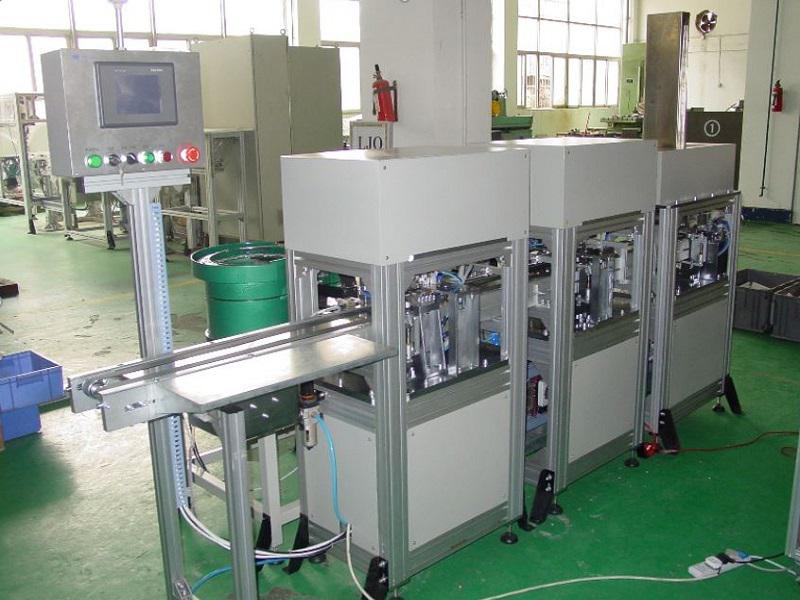

Connector automatic pin insertion machine
- P72C automatic assembly inspection machine
- Cable terminals assembling automation line
- Connector automatic pin insertion machine
- Electric kettle temperature control switch assembly machine
- Electrical component labeling machine
- Fuse soldering and assembly automation
- Insert molding robot arm system
- Fuse sand-filling soldering assembly machine
| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Connector automatic pin insertion machine |
| Material of product | Metal and plastic |
| Industry | Electronic parts |
| Function of equipment | Assembling |
| Type of equipment | Fully auto |

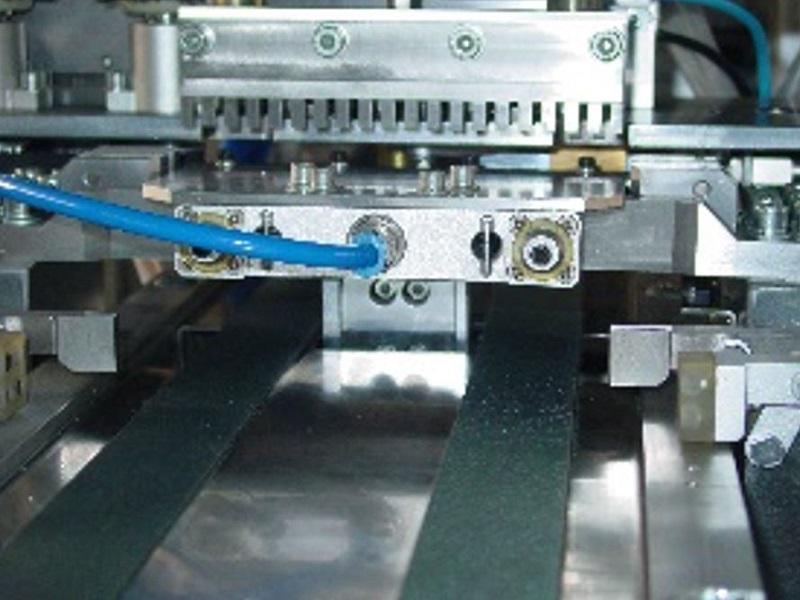

| Description | The equipment is used for automatic pin insertion and assembly of connectors. 12 pins are picked up and inserted into connects at one time. High speed and stability. |
| Speed | 8-12 pieces/minute |
| Mode of operation | Fully automatic, Touch screen manual, Industrial computer upper data management |
| Power supply | Single phase 220V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 3.1m x 1.1m x 1.3 |
| Major components | Gear motor: CPG Servo Stepper Motor: SANYO Clutch, brake device: MIKI, OGURA CLUTCH Indexer: DEX Pneumatic components: SMC, FESTO Linear guide: HIWIN Gear components: NSK、NTN Sensors: OMRON, SUNX, KEYENCE, SOWAY PLC：MITSUBISHI, LOCAL |

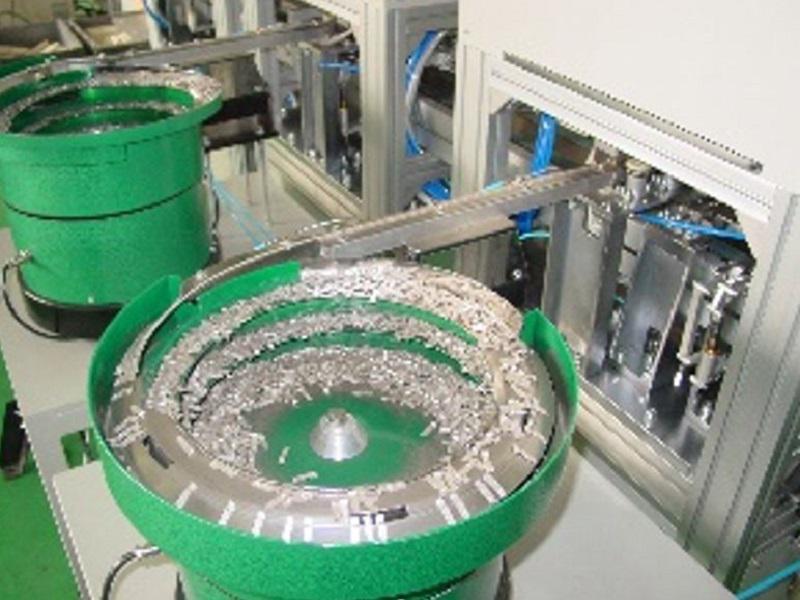

| Structure of equipment | Bulk conveyor line Locating clamping device with ontology Pin dispensing device Needle pulling device Cover mount device Body blocking device Vibrating wire discharge device Discharge conveyor Pneumatic control system Machine framework and other structural components Pneumatic control system, electronic control and man-machine interface |
