- Fuse sand-filling soldering assembly machine
| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Fuse |
| Material of product | Electronic parts |
| Industry | Electronic |
| Function of equipment | Soldering, Assembly, Sand filling, Inspection |
| Type of equipment | Fully auto |

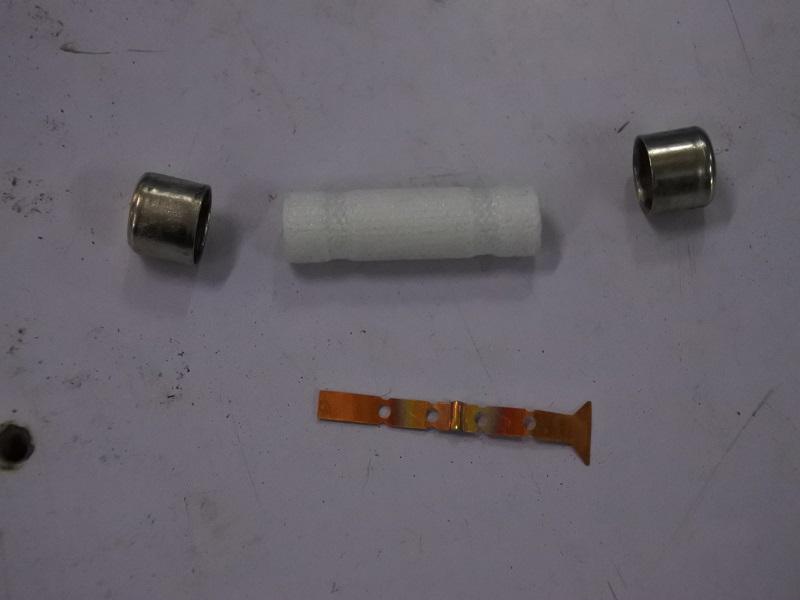

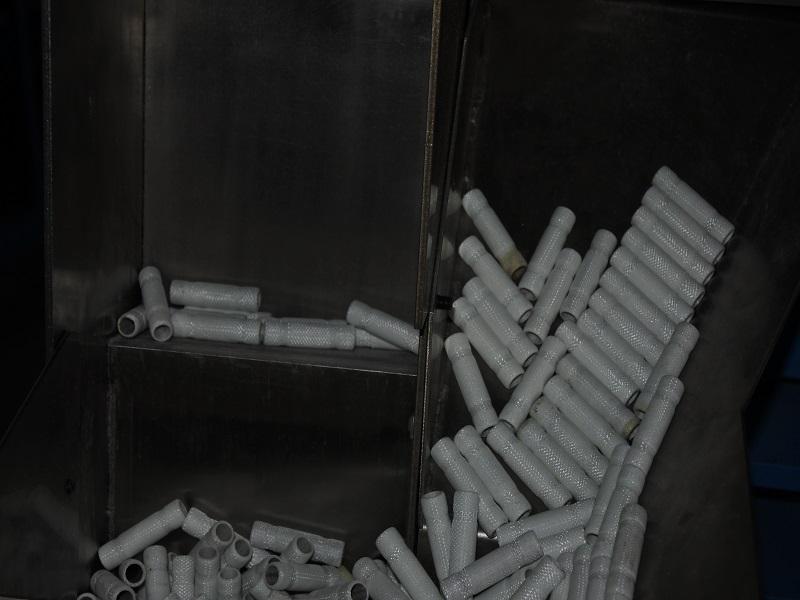

| Description | The automation is designed to handle the complete assembly of fuse. 1. Auto feeding of Tube, Tag and Cap. 2. Sand filling into Tube. 3. Inspection of sand filling and cleaning 4. Soldering and assembly of components. 5. Laser marking 6. Packaging |
| Speed | 4 - 5 second per piece |
| Mode of operation | Automatic, Touch screen manual, Touch screen parameter settings |
| Power supply | Single phase 220V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 3.0m x 2.5m x 1.8m |
| Major components | Gear motor: CPG Servo Stepper Motor: SANYO Clutch, brake device: MIKI, OGURA CLUTCH Indexer: DEX Pneumatic components: SMC, FESTO Linear guide: HIWIN Gear components: NSK、NTN Sensors: OMRON, SUNX, KEYENCE, SOWAY |

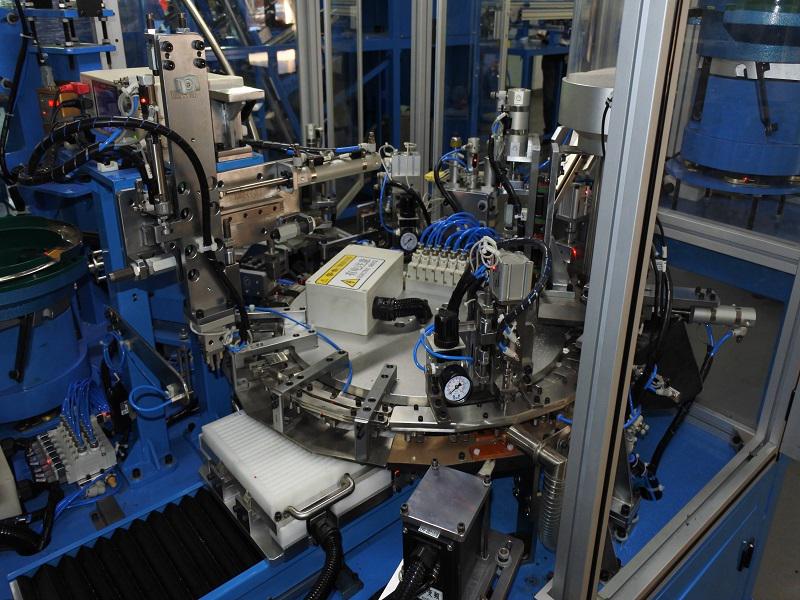

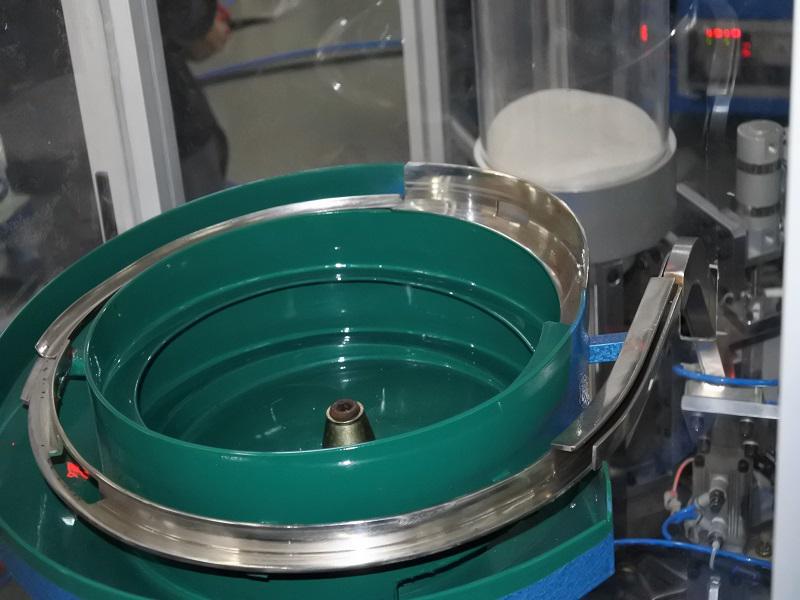

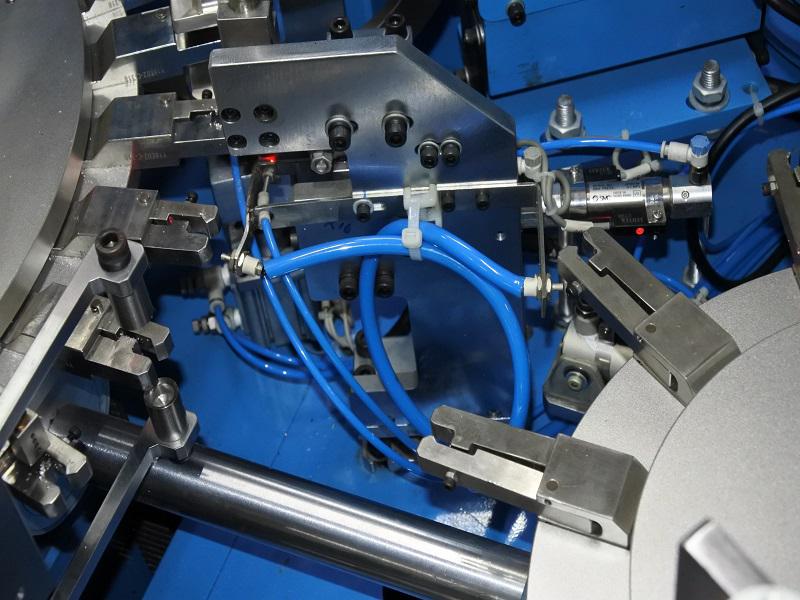

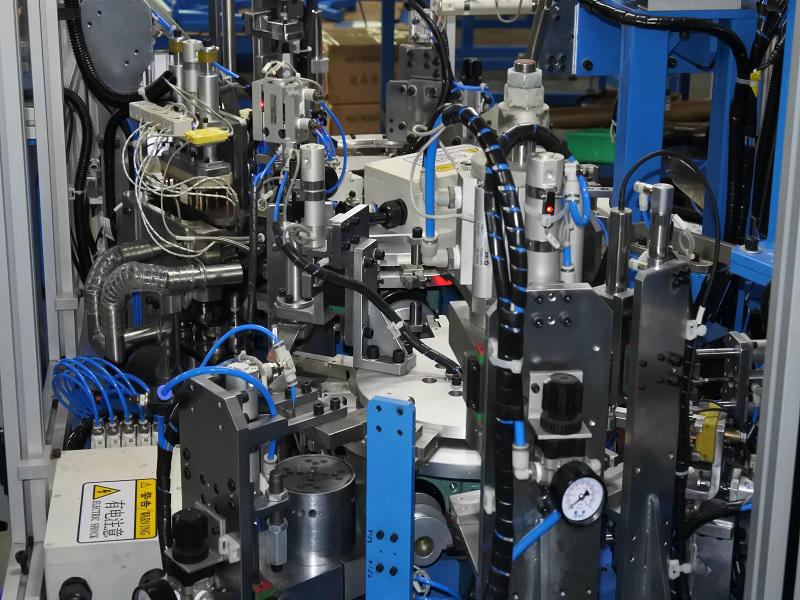

| Structure of equipment | Vibrating feeder systems Index turning table, Pick and place robots Sand filling unit Inspection unit Cleaning unit Solder welding device Main frame and Machining components: Manufacture by Reliable Automation Electronics components and control: IDEC, SCHNEIDER, OMRON components, integrate by Reliable Automation CPU, Power and connector sub-control: Omron / Mitsubishi components, integrate by Reliable Automation Control panel and electrical control: Reliable Automation |
