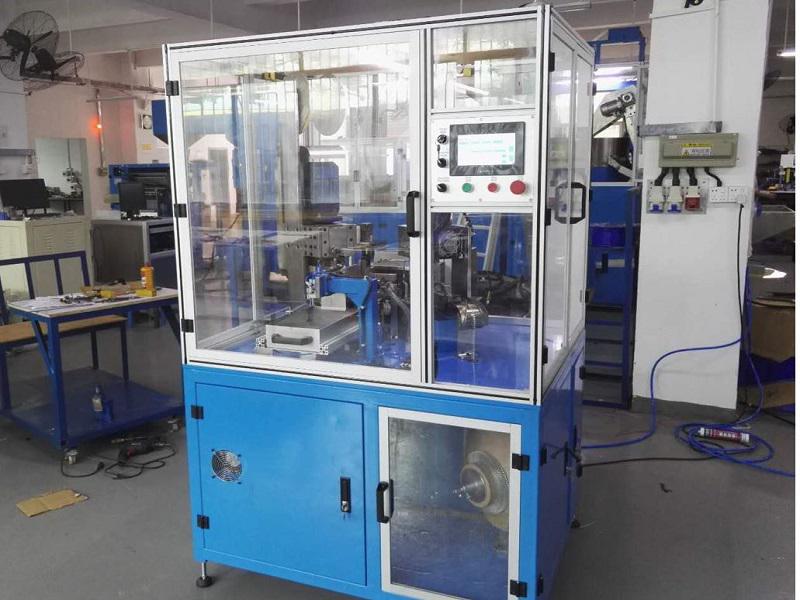

Cable terminals assembling automation line
- P72C automatic assembly inspection machine
- Cable terminals assembling automation line
- Connector automatic pin insertion machine
- Electric kettle temperature control switch assembly machine
- Electrical component labeling machine
- Fuse soldering and assembly automation
- Insert molding robot arm system
- Fuse sand-filling soldering assembly machine
| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Cable terminals assembling automation line |
| Material of product | Metal and plastic |
| Industry | Electronic parts |
| Function of equipment | Assembling |
| Type of equipment | Fully auto |

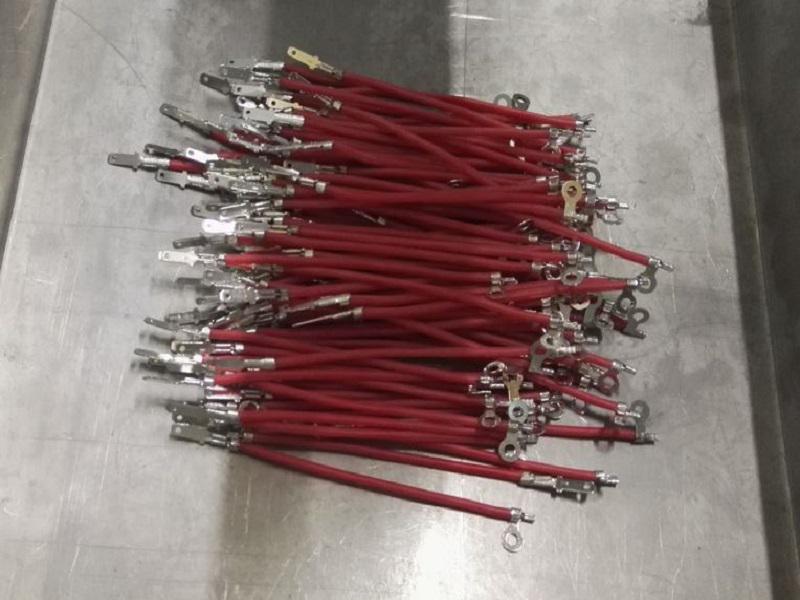

| Description | Terminal cable parts, common parts demanded in electrical products. Simple machine handling, high speed continuous output, stable and high accuracy. |
| Speed | 30 pieces/minute |
| Mode of operation | Fully automatic, Touch screen manual, Industrial computer upper data management |
| Power supply | Single phase 220V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 2.0m x 1.5m x 1.8 |
| Major components | Gear motor: CPG Servo Stepper Motor: SANYO Clutch, brake device: MIKI, OGURA CLUTCH Indexer: DEX Pneumatic components: SMC, FESTO Linear guide: HIWIN Gear components: NSK、NTN Sensors: OMRON, SUNX, KEYENCE, SOWAY PLC：MITSUBISHI, LOCAL |

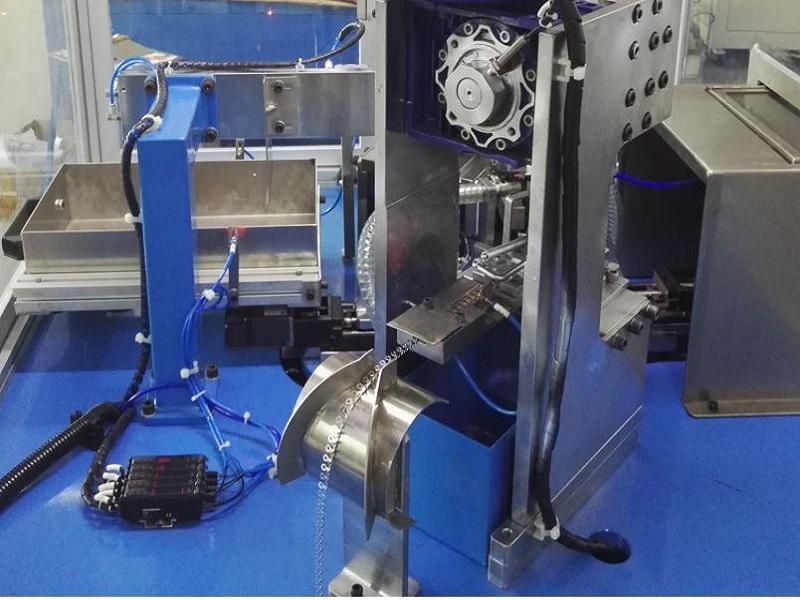

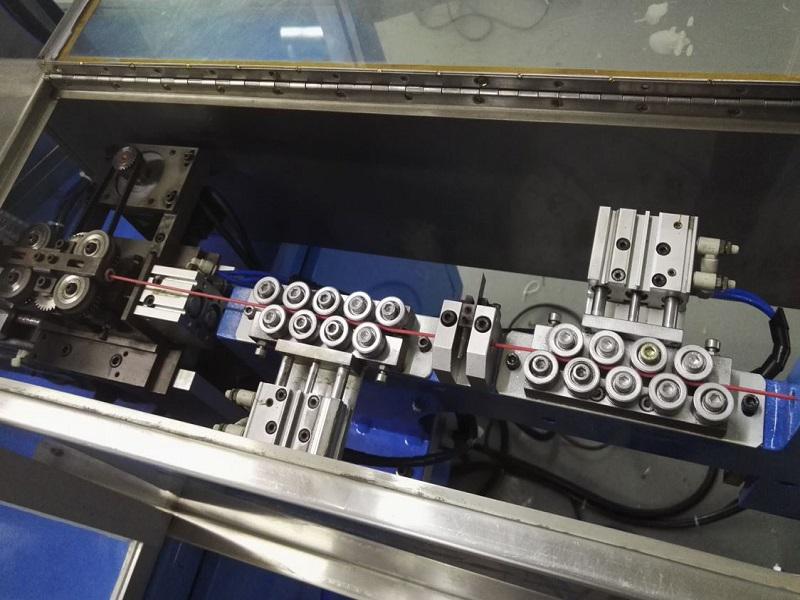

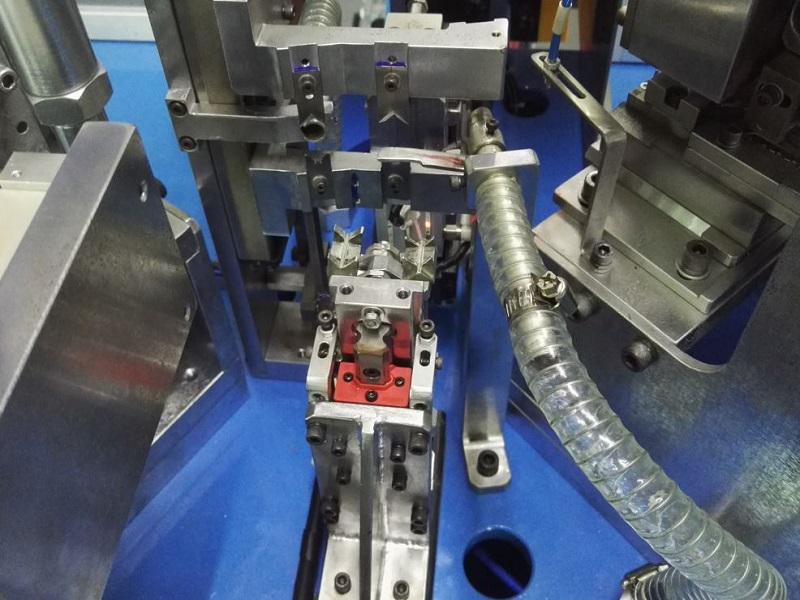

| Structure of equipment | Cable material rolling loading unit Terminal metal piece rolling loading unit Transverse motion stucture for all components 2 axis PnP robot arms Separate cutting, assembling, compression locking device Discharge conveyor Pneumatic control system Machine framework and other structural components Pneumatic control system, electronic control and man-machine interface |
