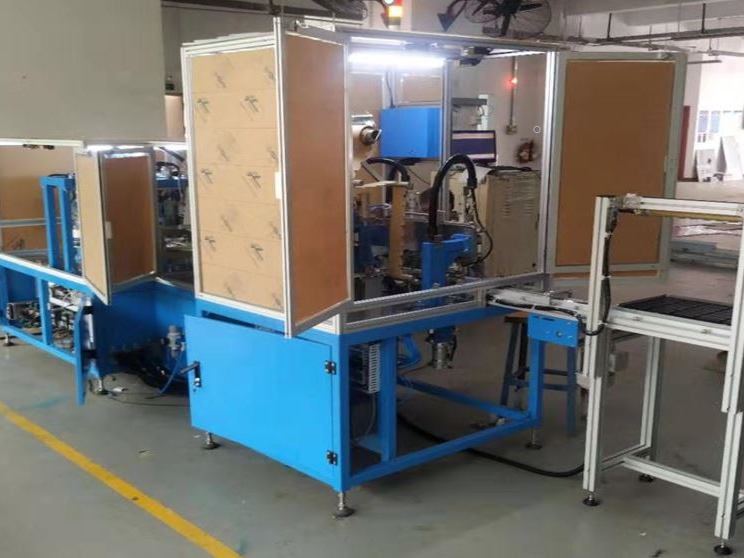

Biological Test Chip Laminating Automation
| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Medical inspection chip |
| Material of product | Plastic |
| Industry | Medical |
| Function of equipment | Lamination, Quality check, Packaging |
| Type of equipment | Fully auto |

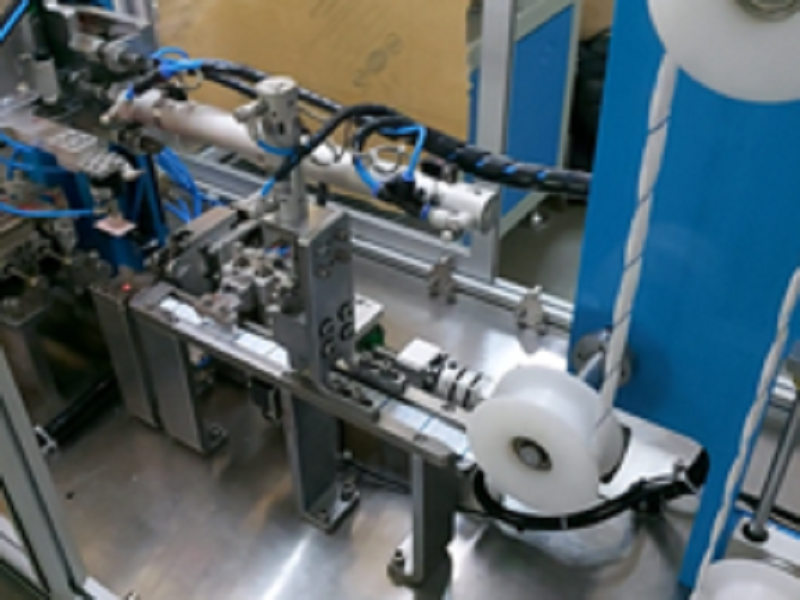

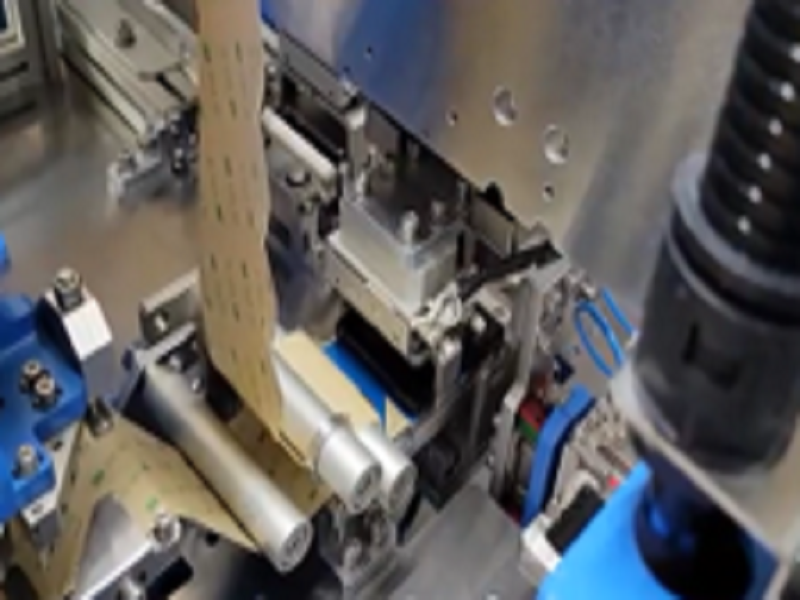

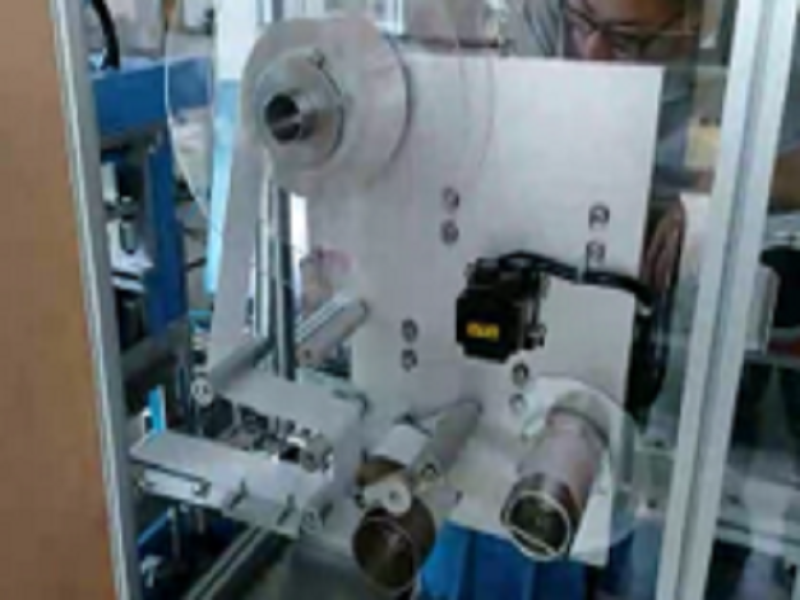

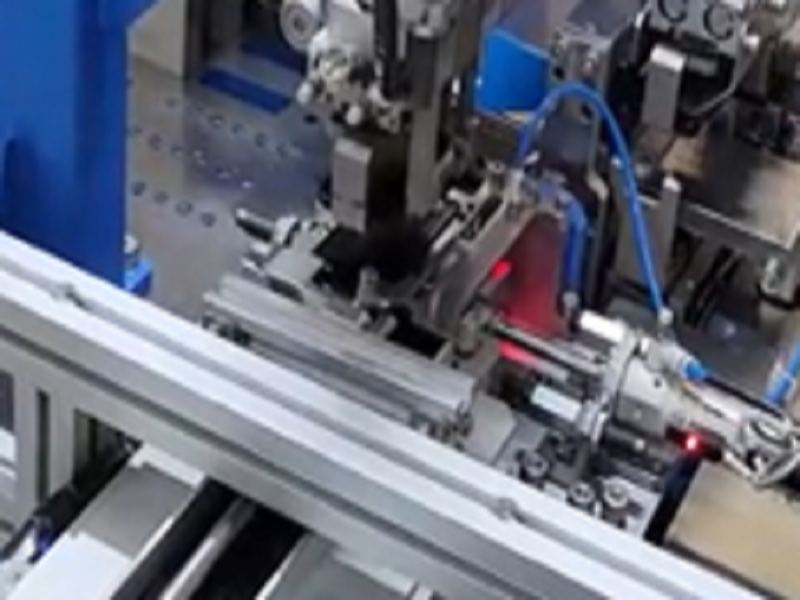

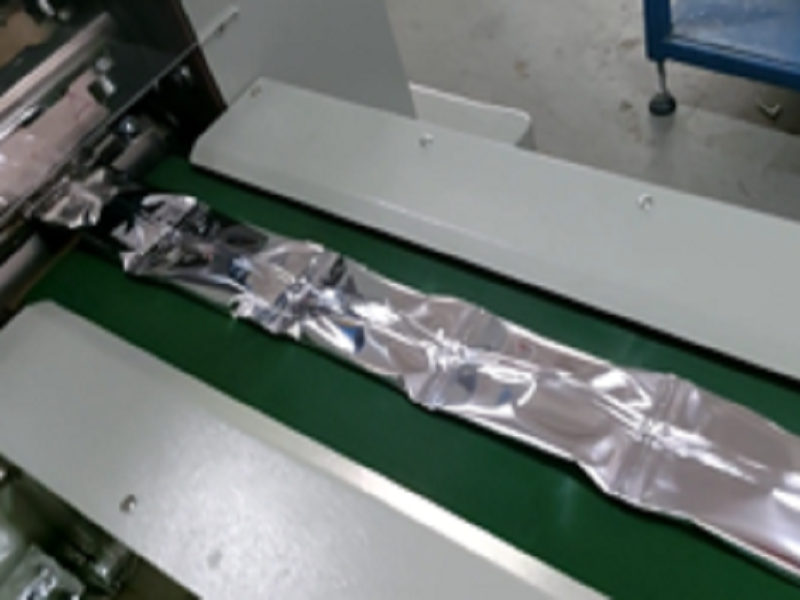

| Description | The automation line laminates film on both sides of medical inspection chips (for lab test), vision system inspection and packaging with gel pack and aluminium foil bag. Work flow: 1. Automatic or manual loading of chip 2. Automatic positioning to latex laminating station 3. Latex uncoil, tension control, laminating and cutting 4. Film uncoil, positioning 5. Film cut in correct size, laminating, vacuum control to remove bubble 6. Packaging station: automatic loading of silica gel pad 7. Packaging station: 3 size sealing : Aluminium foil Packaging |
| Speed | 4 pieces/minute |
| Mode of operation | Fully automatic, Touch screen manual, Industrial computer upper data management |
| Power supply | Single phase 220V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 5.0m x 2.4m x 1.9m |
| Major components | Gear motor: CPG Servo Stepper Motor: SANYO Clutch, brake device: MIKI, OGURA CLUTCH Indexer: DEX Pneumatic components: SMC, FESTO Linear guide: HIWIN Gear components: NSK、NTN Sensors: OMRON, SUNX, KEYENCE, SOWAY |

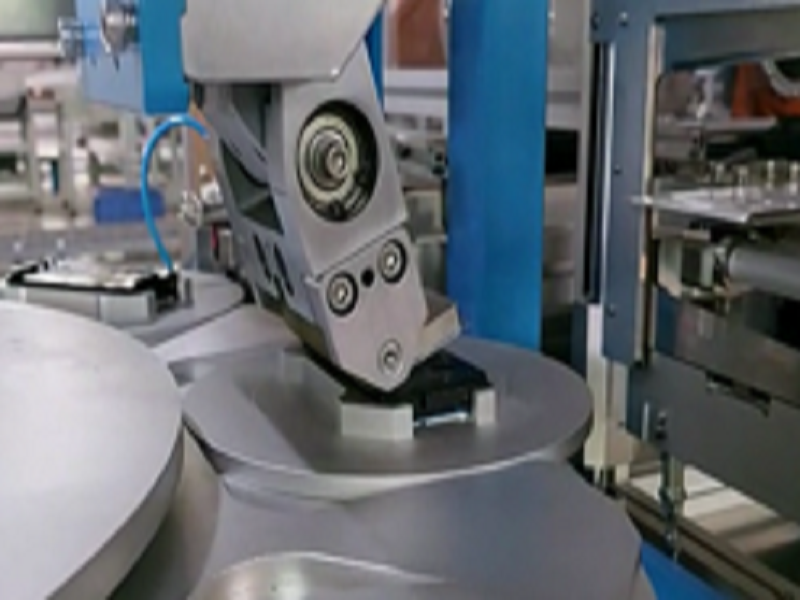

| Structure of equipment | Laminating devices, Roller type material loading and cutting device Vision check system (CCD) Index turning table, Pick and place robots Packaging machine Vibrating feeder device: Manufacture by Reliable Automation Main frame and Machining components: Manufacture by Reliable Automation Electronics components and control: IDEC, SCHNEIDER, OMRON components, integrate by Reliable Automation CPU, Power and connector sub-control: Omron / Mitsubishi components, integrate by Reliable Automation Control panel and electrical control: Reliable Automation |
