Medical face shield assembling and packaging automation
| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Medical face shield assembling and packaging automation |
| Material of product | Plastic |
| Industry | Medical |
| Function of equipment | Assembling, Inspection and Packaging |
| Type of equipment | Fully auto |

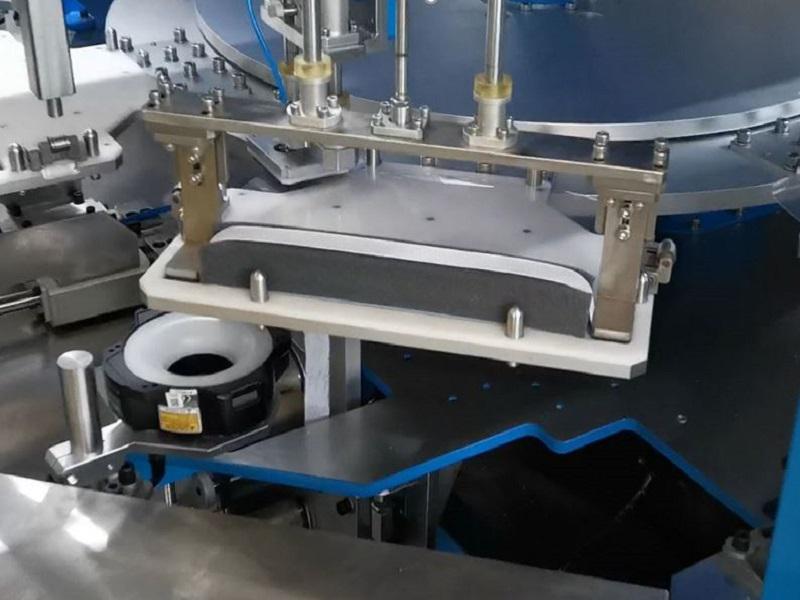

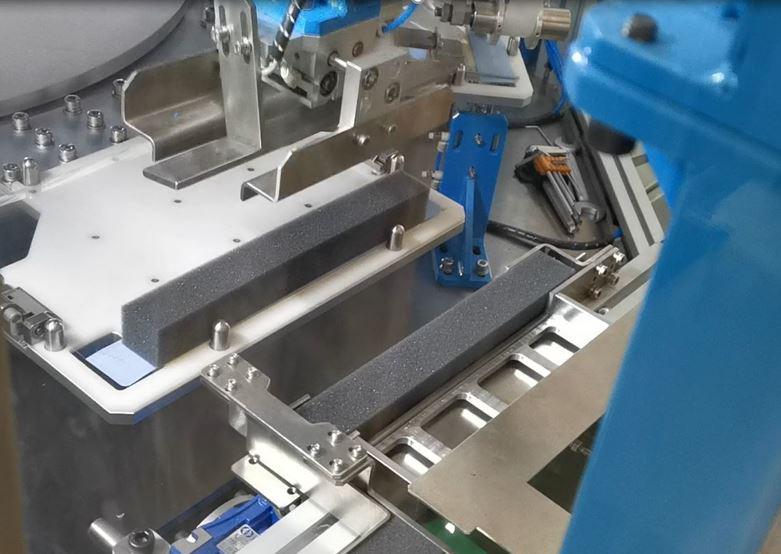

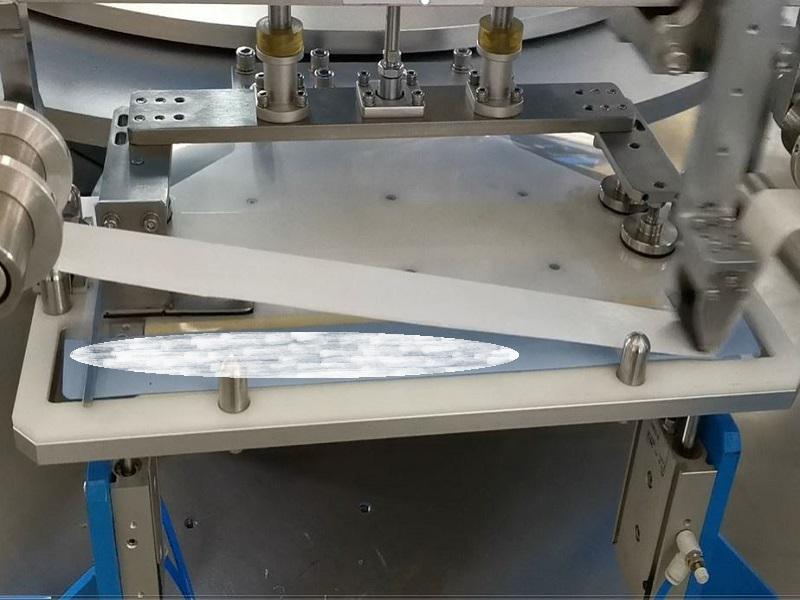

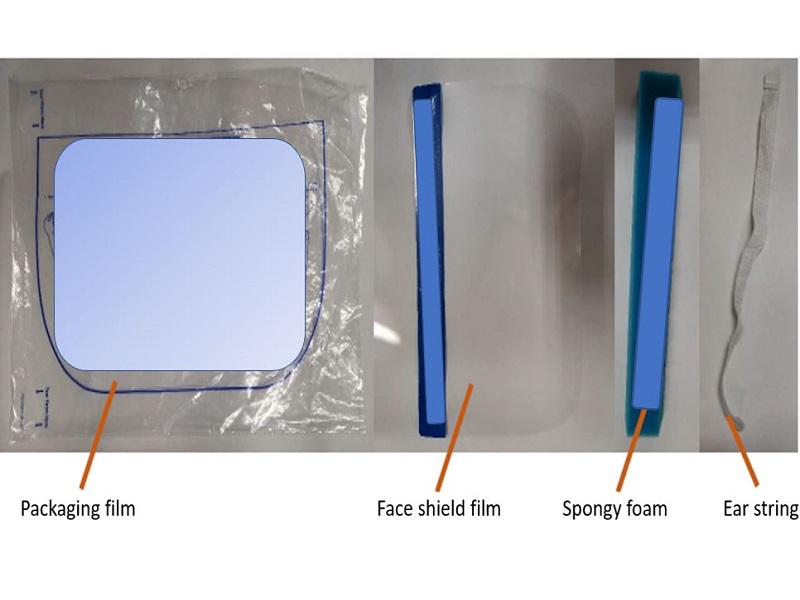

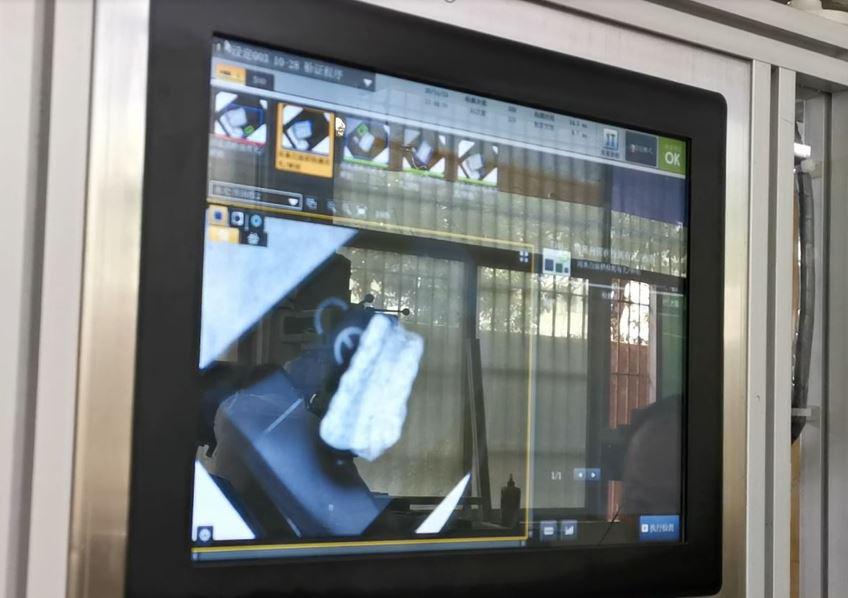

| Description | Consumable used in medical or highly hygiene requirement senario. High speed production without human interfere, stable output and product cleanliness assured. Work flow: 1. Shield film loading 2. Double side tape install 3. Spongy foam assembly 4. Ear string insertion 5. Visual quality check 6. Automatic packing |
| Speed | 15 pieces/minute |
| Mode of operation | Fully automatic, Touch screen manual, Industrial computer upper data management |
| Power supply | Single phase 220V |
| Air supply | 0.6Mpa |

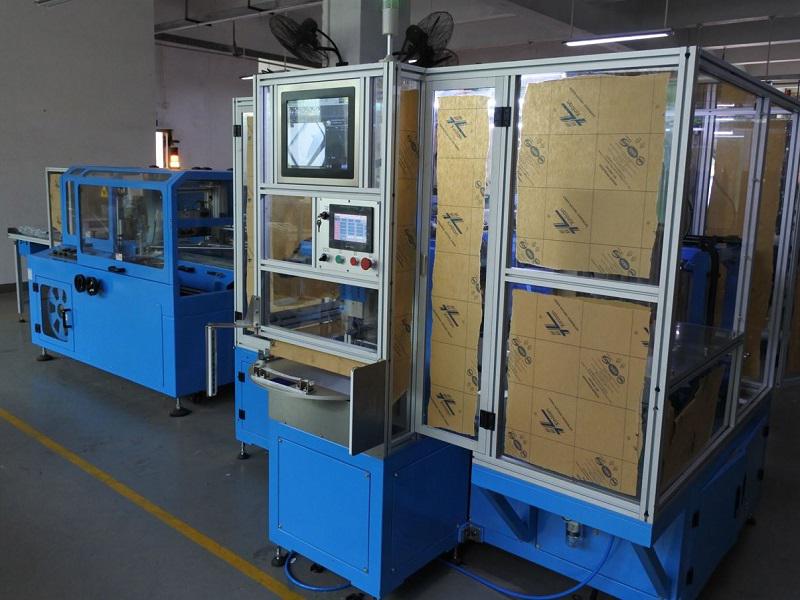

| Equipment dimensions (Length x Width x Height) | 6.0m x 2.0m x 1.8m |
| Major components | Gear motor: CPG Servo Stepper Motor: SANYO Clutch, brake device: MIKI, OGURA CLUTCH Indexer: DEX Pneumatic components: SMC, FESTO Linear guide: HIWIN Gear components: NSK、NTN Sensors: OMRON, SUNX, KEYENCE, SOWAY PLC：MITSUBISHI, LOCAL |

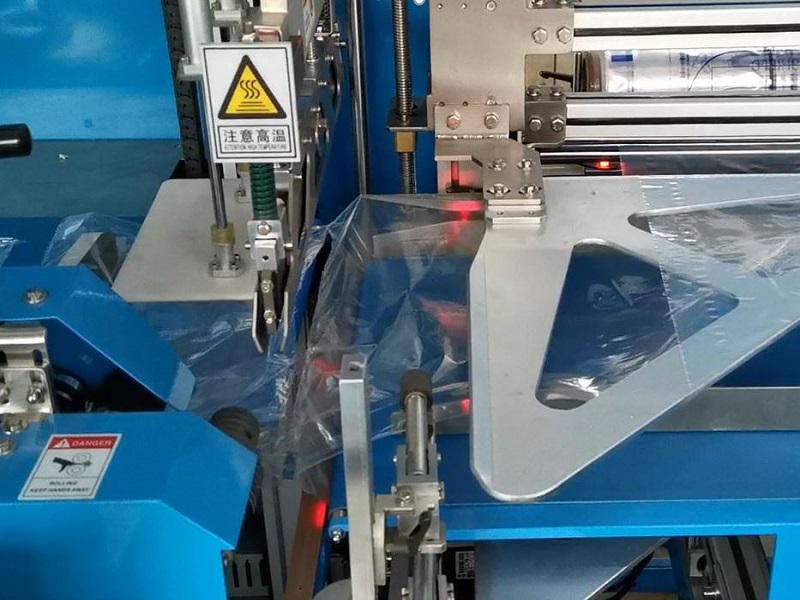

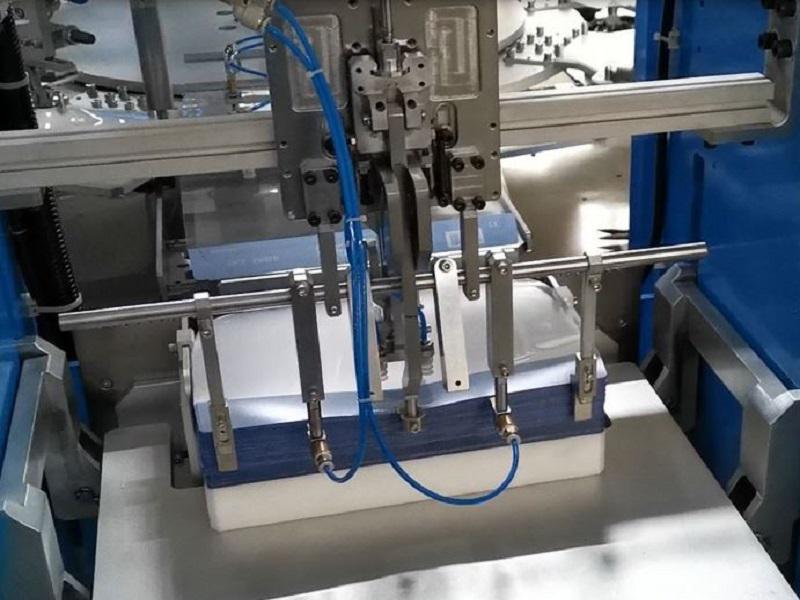

| Structure of equipment | Mask film loader Doubel side tape rolling feeder Spongy foam stack loader 2 axis PnP robot arms Transfer feeding structures for each components CCD camera Horizontal wrapping structure Discharge conveyor Machine framework and other structural components Pneumatic control system, electronic control and man-machine interface |
