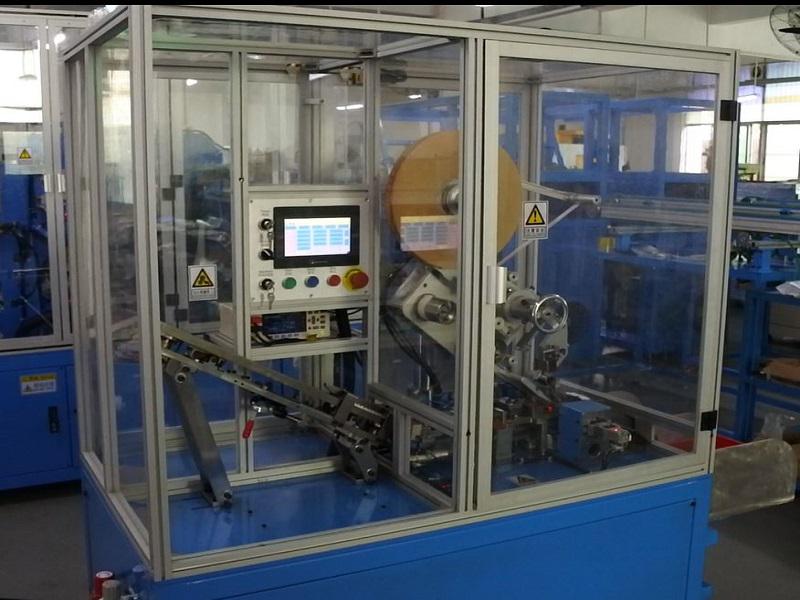

Electrical component labeling machine

Equipment informationEquipment specifications

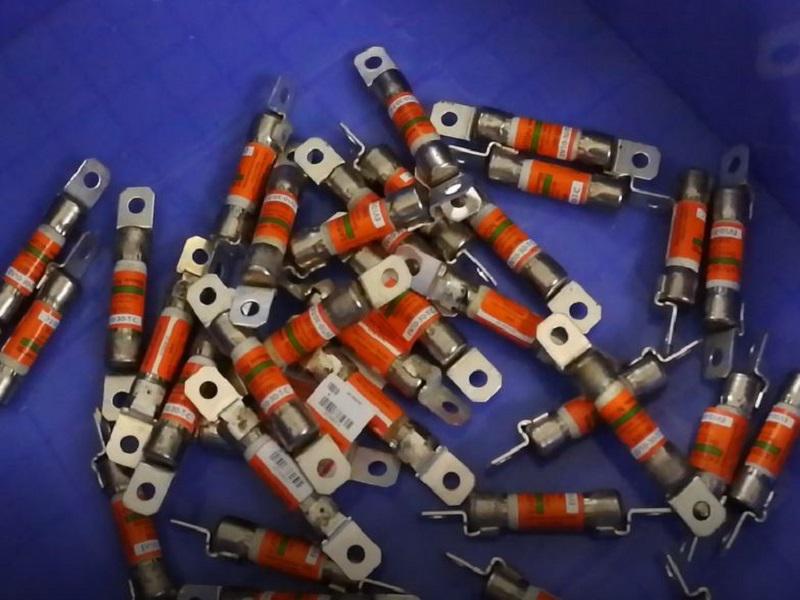

Suitable productElectrical component labeling machine
Material of productMetal and plastic
IndustryElectronic parts
Function of equipmentAssembling
Type of equipmentFully auto
Description

The equipment is used for automatic labeling on electrical component. Accurate positioning controlled, high speed and easy to operate. Can be fully automatic or semi automatic according to customer requirement. Stable and guarantee high production output.

Speed20 pieces/minute
Mode of operationFully automatic, Touch screen manual, Industrial computer upper data management
Power supplySingle phase 220V
Air supply0.6Mpa
Equipment dimensions (Length x Width x Height)2.5m x 1.3m x 1.9m
Major components

Gear motor: CPG

Servo Stepper Motor: SANYO

Clutch, brake device: MIKI, OGURA CLUTCH

Pneumatic components: SMC, FESTO

Linear guide: HIWIN

Gear components: NSK、NTN

Sensors: OMRON, SUNX, KEYENCE, SOWAY

PLC:MITSUBISHI, LOCAL

Structure of equipment

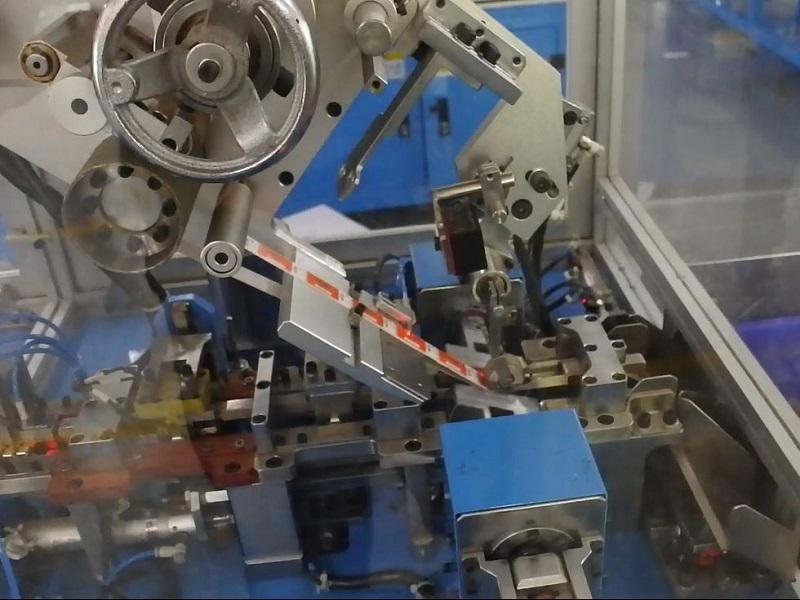

Label material rolling loading unit

Label material back sheet recoiling unit

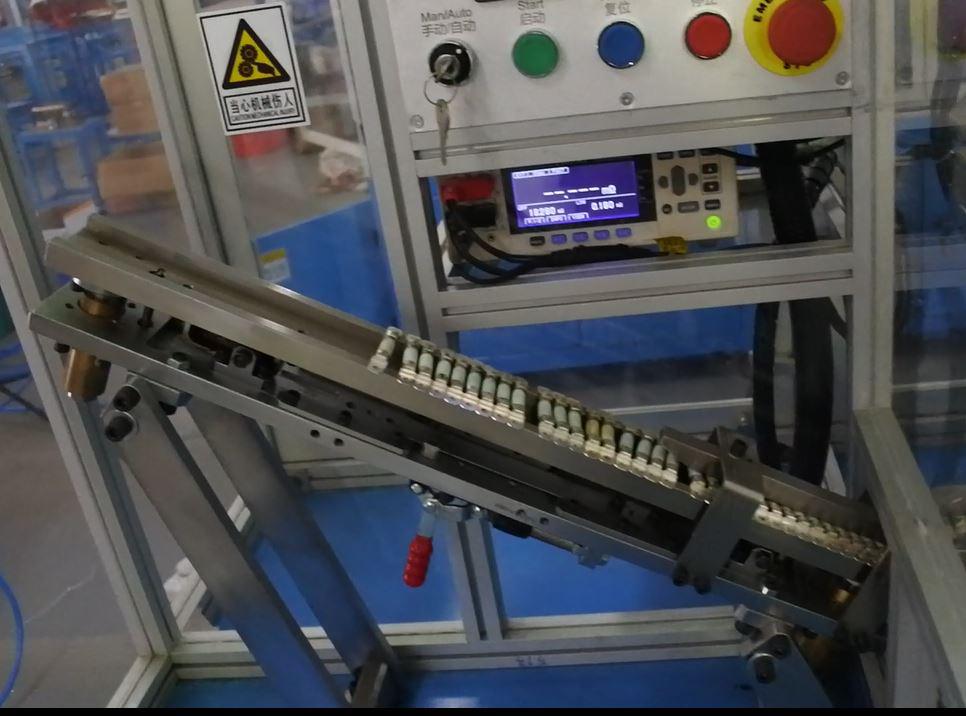

Component piece loading conveyor

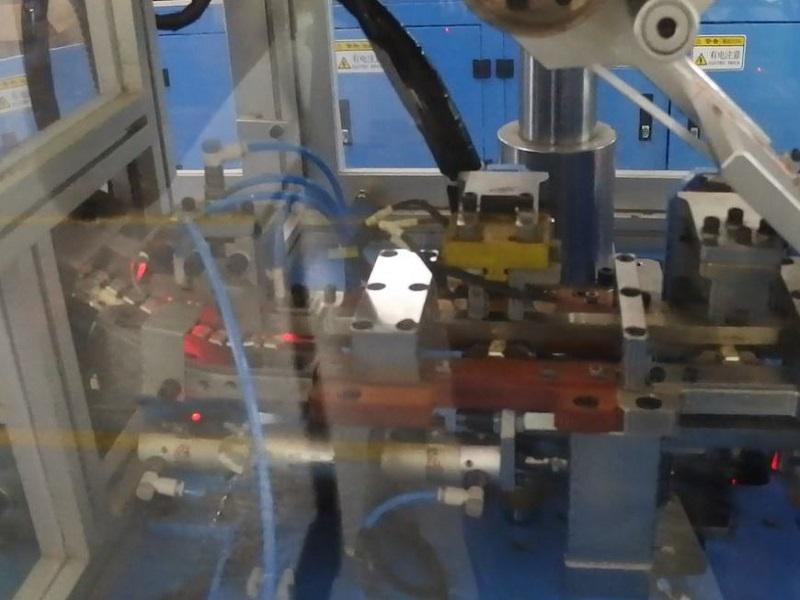

Transverse motion structure for all components

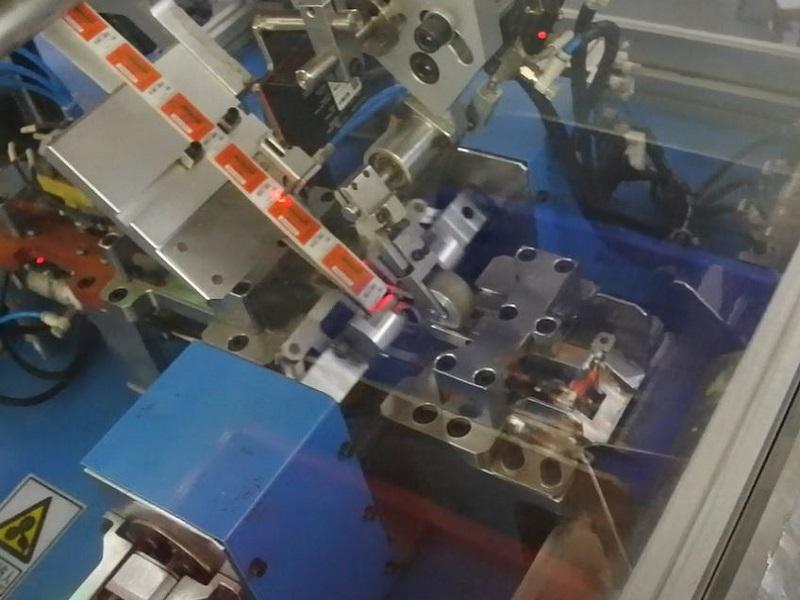

Labeling

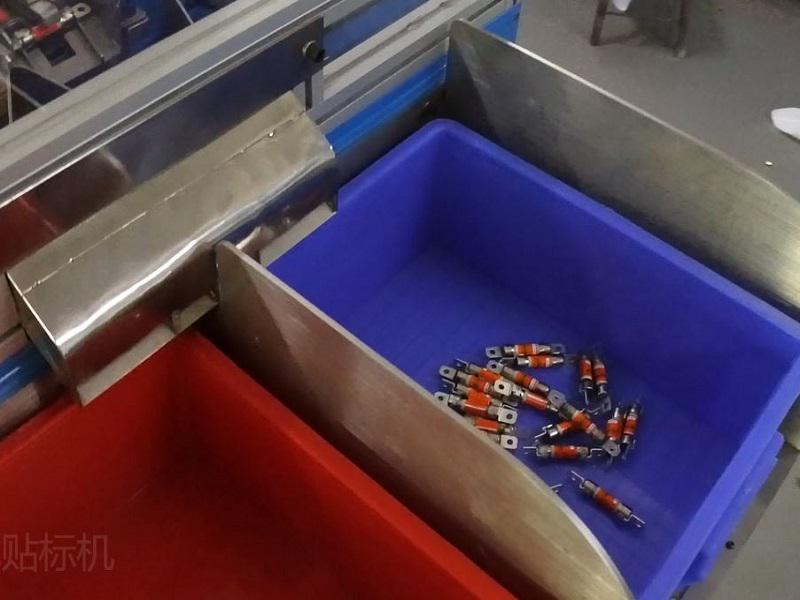

Discharge conveyor

Pneumatic control system

Machine framework and other structural components

Pneumatic control system, electronic control and man-machine interface
