Car door hinge torque test automation
| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Car door hinge |
| Material of product | Metal |
| Industry | Automotive |
| Function of equipment | Torque test |
| Type of equipment | Fully auto |

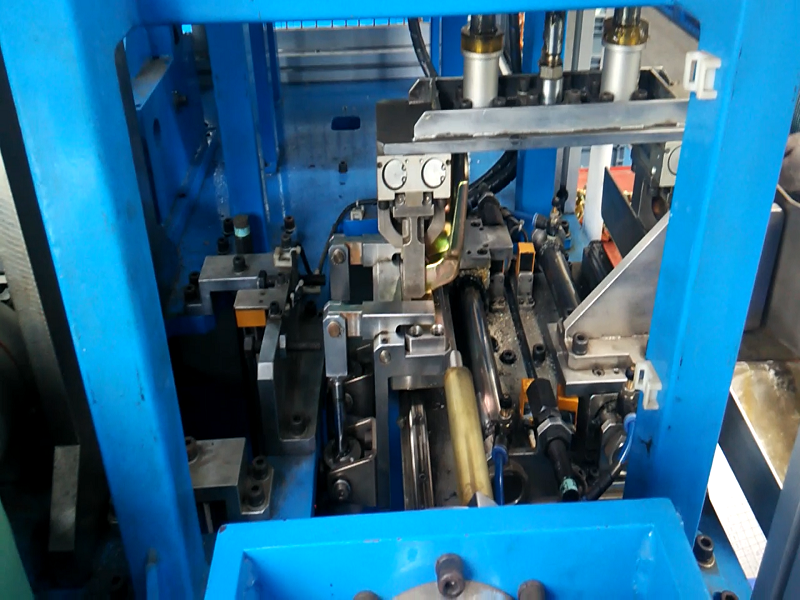

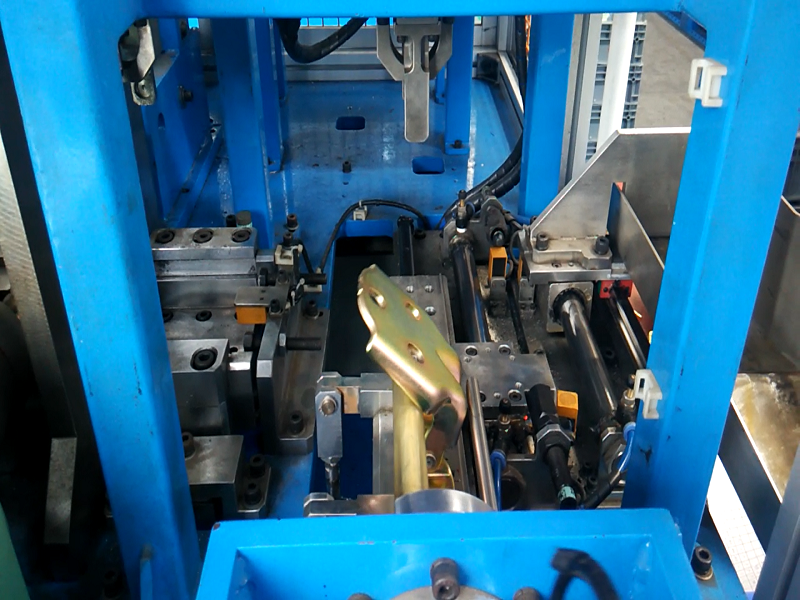

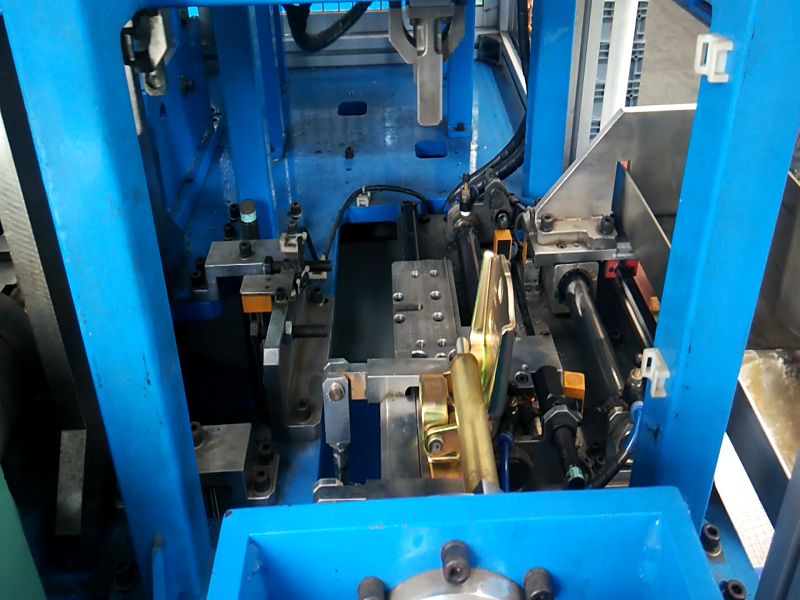

| Description | This production equipment is applied to the torque test of car door hinge. It is an equipment for 100% quality inspection of products. The inspection, loading and unloading actions are continuously performed synchronously, eliminating the waiting time of each process. 1. Door hinges are automatically aligned and enter into fixture 2. Robot puts the door hinge into a testing station 3. The door hinge is bent to perform the torque test 4. According to the test results, the finished product is automatically separated to the finished box and the defective box. |
| Speed | 5 - 6 pieces / minute |
| Mode of operation | Automatic, Touch screen manual, Touch screen parameter settings |
| Power supply | Single phase 220V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 1.2m x 1.5m x 1.4m |
| Major components | Gear motor: CPG Servo Stepper Motor: SANYO Clutch, brake device: MIKI, OGURA CLUTCH Pneumatic components: SMC, FESTO Linear guide: HIWIN Gear components: NSK、NTN Sensors: OMRON, SUNX, KEYENCE, SOWAY |
| Structure of equipment | Torque test device Pick and place robots Main frame and Machining components: Manufacture by Reliable Automation Electronics components and control: IDEC, SCHNEIDER, OMRON components, integrate by Reliable Automation CPU, Power and connector sub-control: Omron / Mitsubishi components, integrate by Reliable Automation Control panel and electrical control: Reliable Automation |
