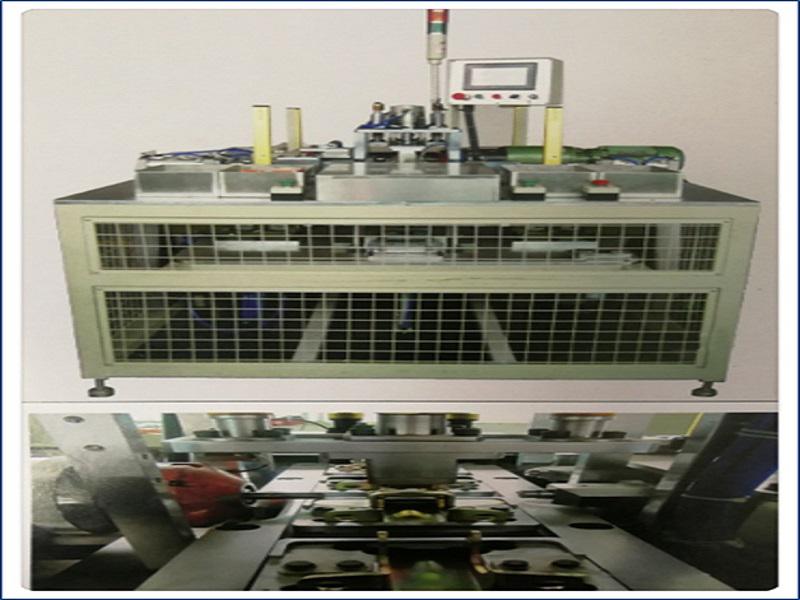

Car door hinge automatic assembly machine
| Equipment information | Equipment specifications |
|---|---|

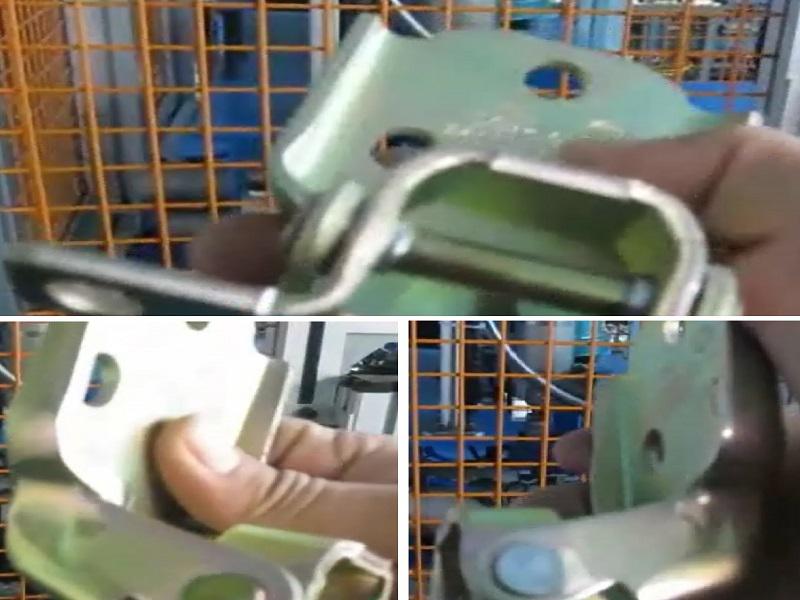

| Suitable product | Car door hinge |
| Material of product | Metal |
| Industry | Automotive |
| Function of equipment | Assembly |
| Type of equipment | Fully auto |

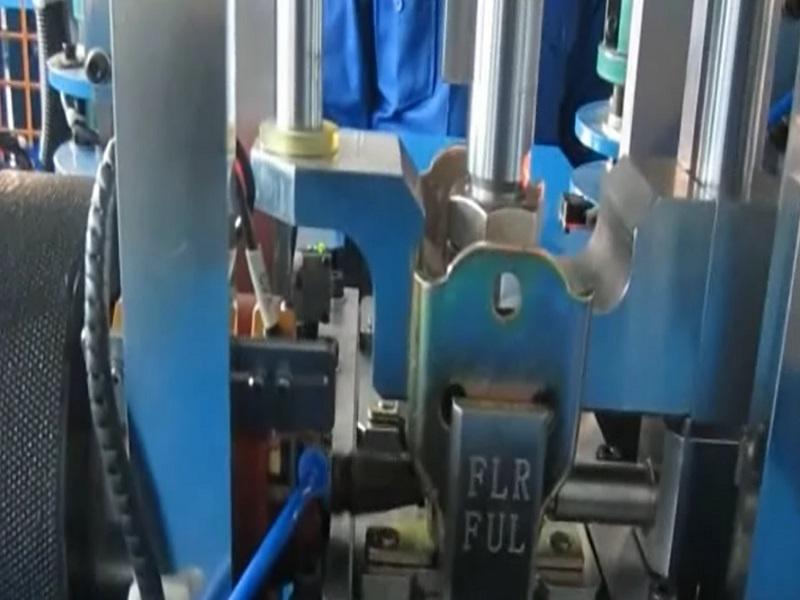

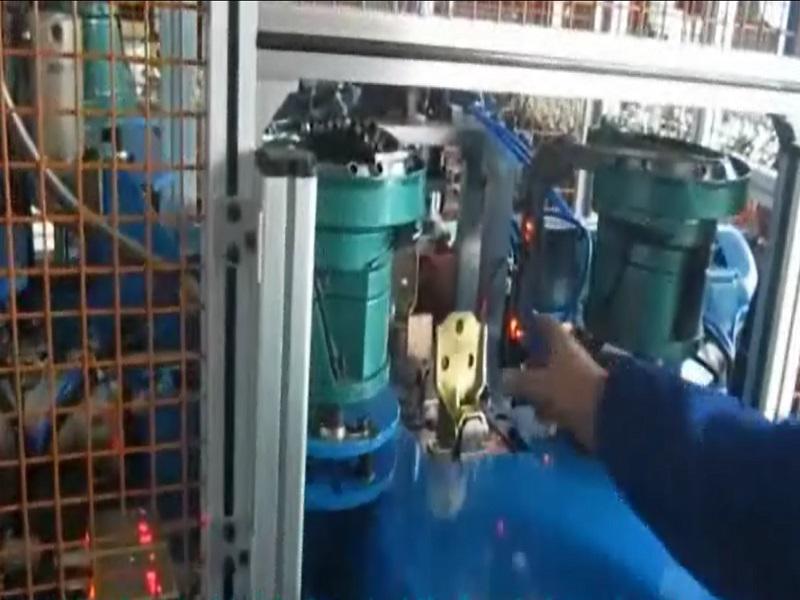

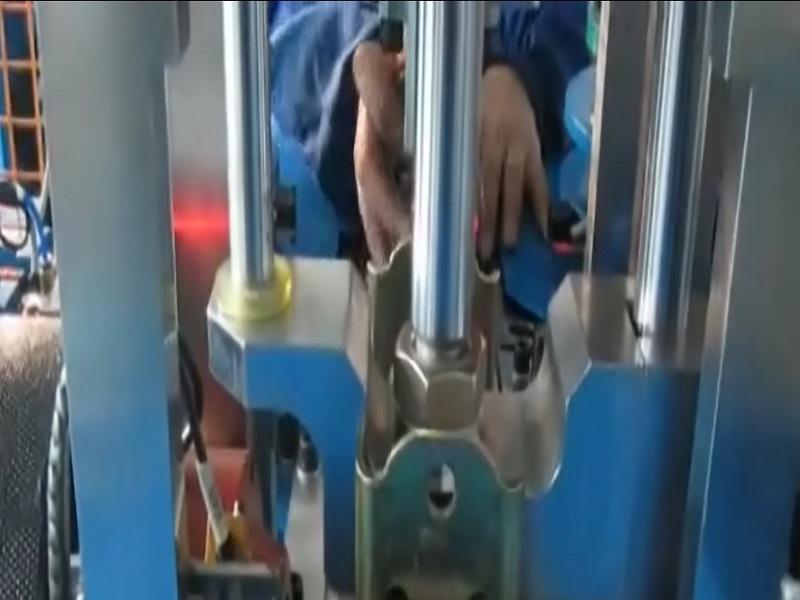

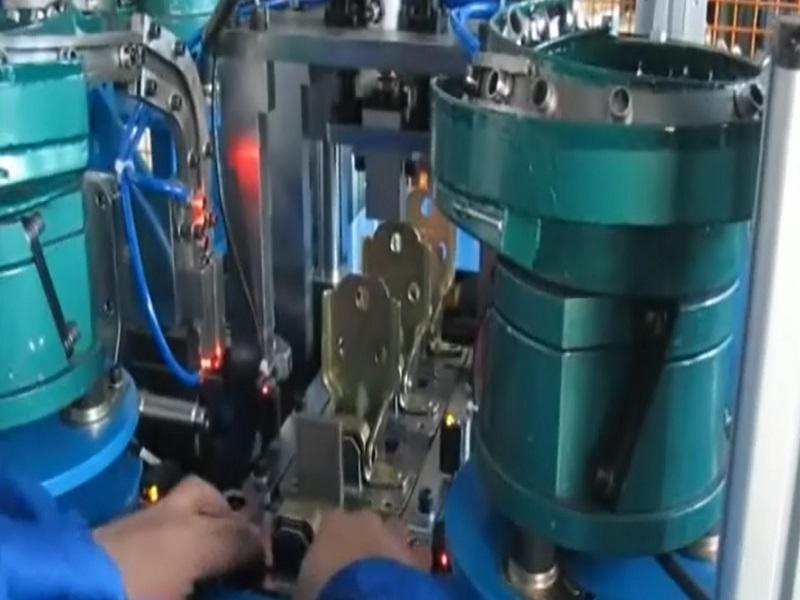

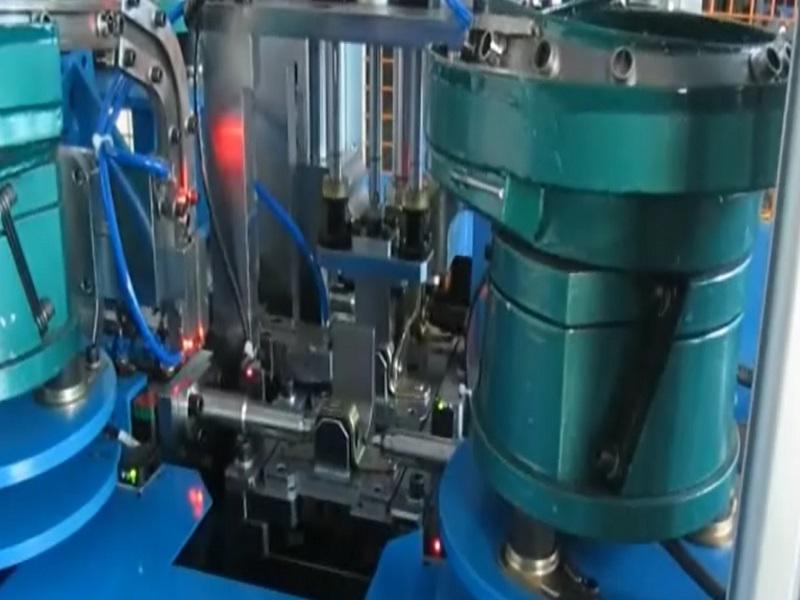

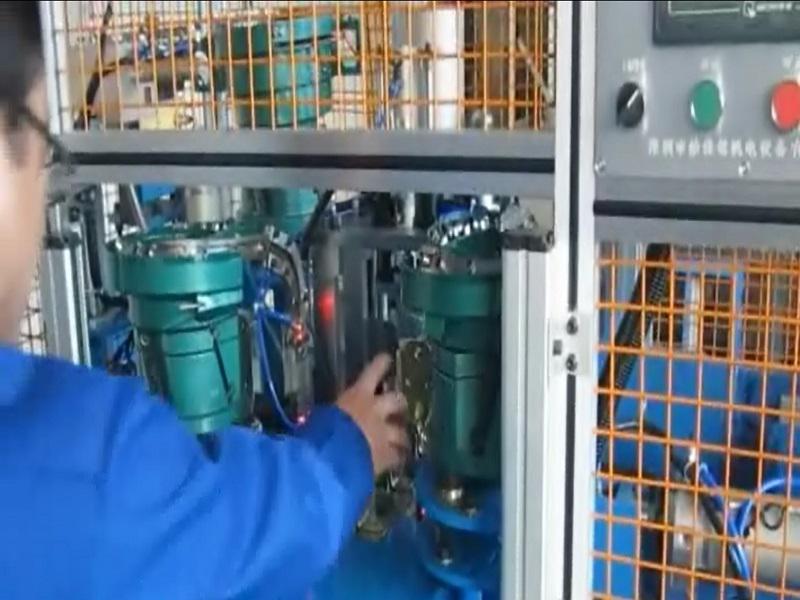

| Description | This production equipment is applied to the automatic production of door hinges. 1. Manually insert hinge bottom components into the fixture 2. Metal components automatically sent to the reaming station, and then automatically sent to the next station bearing sleeve. 3. Simultaneously, manually insert hinge upper component into the fixture 4. Assembling of gear and bearing. 5. Automatically loading the pins and screwing the pins 6. Manually finished the finished product |
| Speed | 3 - 4 pieces / minute |
| Mode of operation | Automatic, Touch screen manual, Touch screen parameter settings |
| Power supply | Single phase 220V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 1.4m x 1.0m x 1.6m |
| Major components | Gear motor: CPG Servo Stepper Motor: SANYO Clutch, brake device: MIKI, OGURA CLUTCH Pneumatic components: SMC, FESTO Linear guide: HIWIN Gear components: NSK、NTN Sensors: OMRON, SUNX, KEYENCE, SOWAY |
| Structure of equipment | Pick and place robots Conveying system Main frame and Machining components: Manufacture by Reliable Automation Electronics components and control: IDEC, SCHNEIDER, OMRON components, integrate by Reliable Automation CPU, Power and connector sub-control: Omron / Mitsubishi components, integrate by Reliable Automation Control panel and electrical control: Reliable Automation |
