Electric kettle temperature control switch assembly machine
| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Electric kettle |
| Material of product | Electronic parts |
| Industry | Home Appliances |
| Function of equipment | Assembly, Quality check |
| Type of equipment | Fully auto |

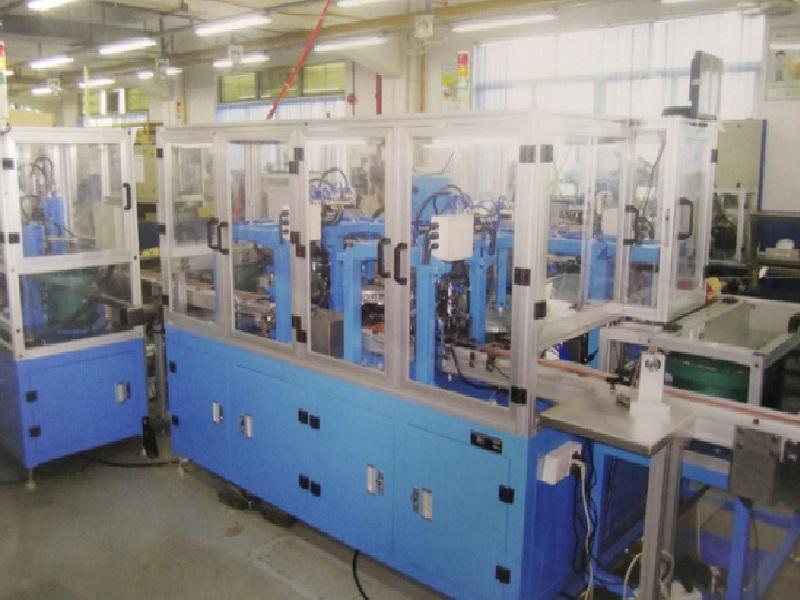

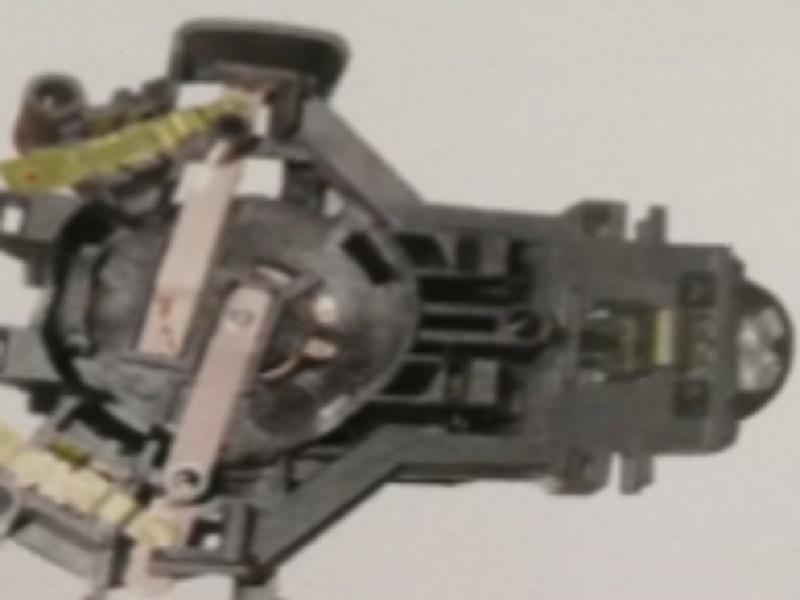

| Description | This production equipment is applied to assembly and quality inspection of the electric kettle temperature control switch. The equipment is composed of two 8-station rotary tables, each with 10 working positions. The complex assembly actions include the positive and negative copper plates, the shrapnel, the reset rod and the assembly of the elastic wire, and the detection process of each part. |
| Speed | 25 - 27 pieces / minute |
| Mode of operation | Automatic, Touch screen manual, Touch screen parameter settings |
| Power supply | 3-plase 380V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 4.5m x 1.7m x 1.35m |
| Major components | Gear motor: CPG Servo Stepper Motor: SANYO Clutch, brake device: MIKI, OGURA CLUTCH Indexer: DEX Pneumatic components: SMC, FESTO Linear guide: HIWIN Gear components: NSK、NTN Sensors: OMRON, SUNX, KEYENCE, SOWAY |
| Structure of equipment | Vibrating feeder systems Index turning table, Pick and place robots Packaging machine Main frame and Machining components: Manufacture by Reliable Automation Electronics components and control: IDEC, SCHNEIDER, OMRON components, integrate by Reliable Automation CPU, Power and connector sub-control: Omron / Mitsubishi components, integrate by Reliable Automation Control panel and electrical control: Reliable Automation |
